Open Type Diesel Generators
Factory-direct open frame diesel generator sets — the most cost-effective choice for indoor plant rooms, enclosed generator houses, and professional installations. 13 power ratings from 30kW to 500kW.
Lowest Cost per kW
The open frame configuration eliminates canopy manufacturing costs entirely, delivering the highest power-per-dollar ratio of any generator format — the preferred choice for buyers with an existing generator enclosure.
Unrestricted Engine Access
All engine components, injectors, filters, and the alternator are immediately visible and accessible without opening any panels. Routine servicing takes less time, and fault diagnosis is faster and simpler.
50Hz & 60Hz Configurations
All models can be ordered in 50Hz (1500 RPM, standard for Africa, Asia, Europe) or 60Hz (1800 RPM, standard for Americas) configuration. Specify at time of enquiry — no additional lead time.
Available Models
30kW / 38kVA Open Type Generator
- Engine: ZH4100D
- Controller: Four Protection System
- Weight: 560 kg
- Dimensions: 1700 × 600 × 1100 mm
40kW / 50kVA Open Type Generator
- Engine: ZH4100ZD
- Controller: Four Protection System
- Weight: 600 kg
- Dimensions: 1700 × 600 × 1100 mm
50kW / 63kVA Open Type Generator
- Engine: R4105ZD
- Controller: Four Protection System
- Weight: 600 kg
- Dimensions: 1800 × 600 × 1100 mm
75kW / 94kVA Open Type Generator
- Engine: R6105AZD
- Controller: Four Protection System
- Weight: 950 kg
- Dimensions: 2300 × 720 × 1200 mm

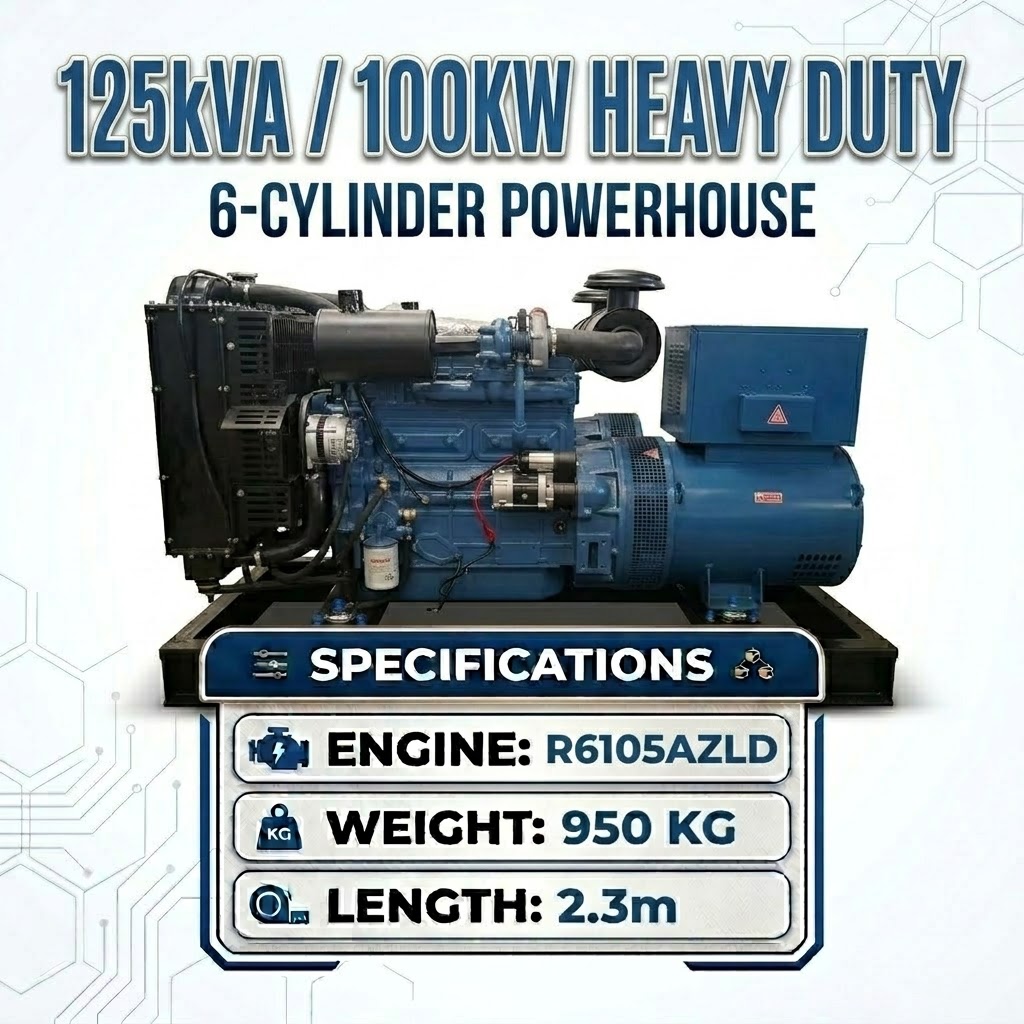

100kW / 125kVA Open Type Generator
- Engine: R6105AZLD
- Controller: Four Protection System
- Weight: 950 kg
- Dimensions: 2300 × 720 × 1200 mm

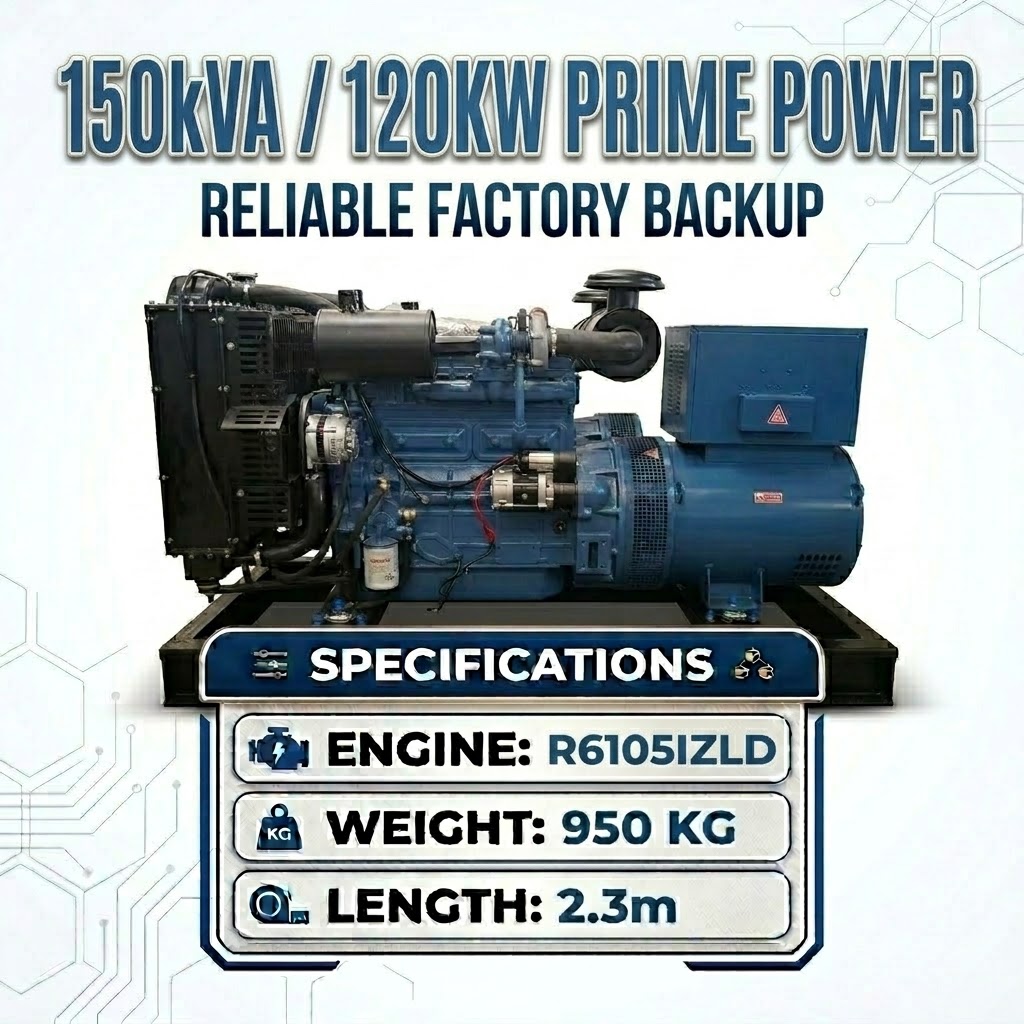

120kW / 150kVA Open Type Generator
- Engine: R6105IZLD
- Controller: Four Protection System
- Weight: 950 kg
- Dimensions: 2300 × 720 × 1200 mm

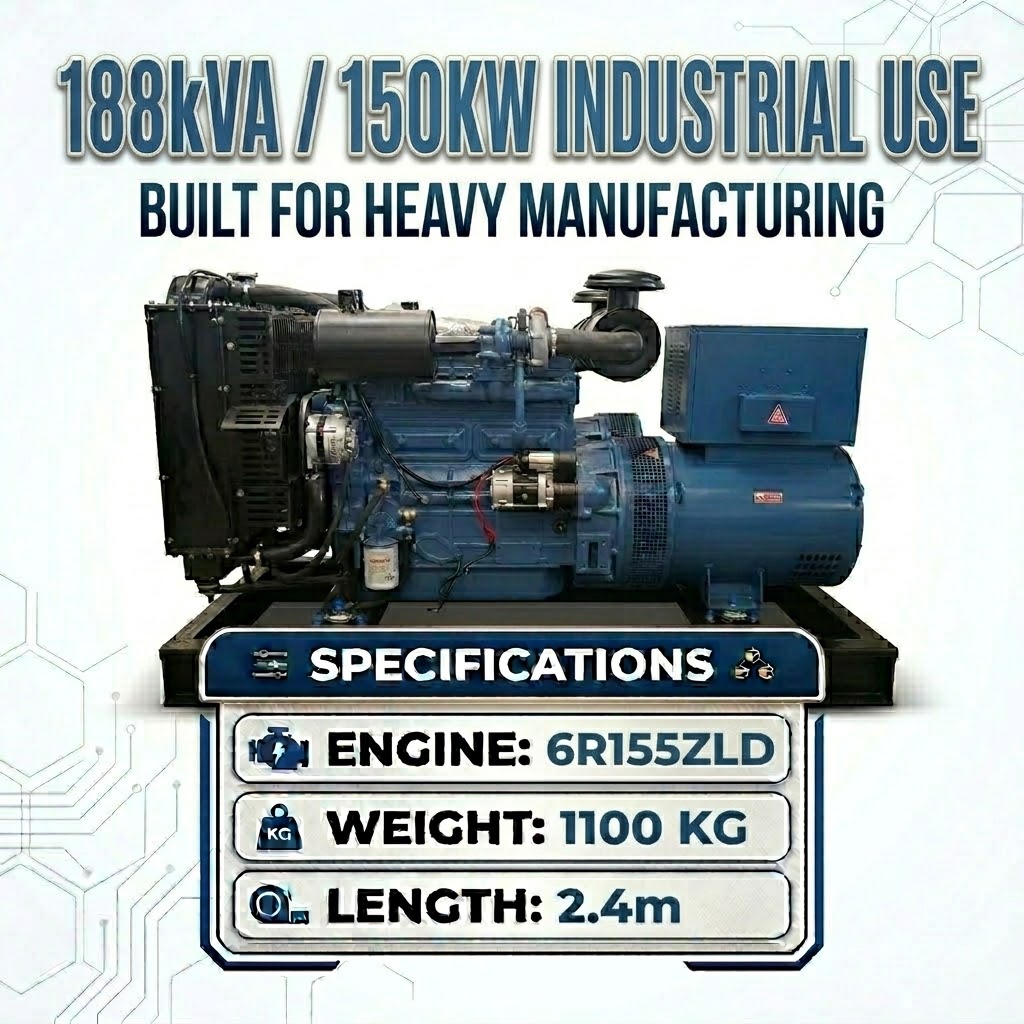

150kW / 188kVA Open Type Generator
- Engine: 6R155ZLD
- Controller: Four Protection System
- Weight: 1100 kg
- Dimensions: 2400 × 940 × 1250 mm

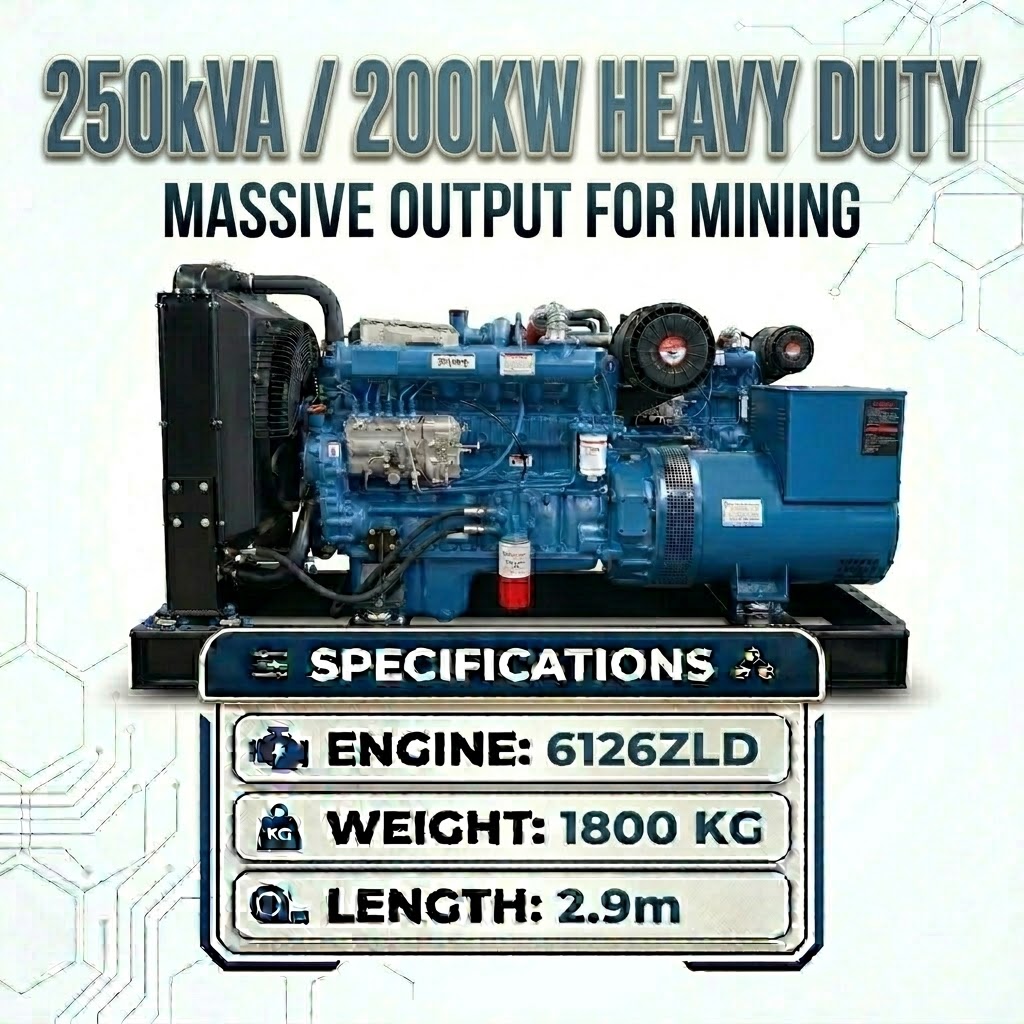

200kW / 250kVA Open Type Generator
- Engine: 6126ZLD
- Controller: Full Auto (ATS)
- Weight: 1800 kg
- Dimensions: 2900 × 920 × 1400 mm
250kW / 313kVA Open Type Generator
- Engine: 6126ZLD
- Controller: Full Auto (ATS)
- Weight: 1900 kg
- Dimensions: 2900 × 920 × 1400 mm

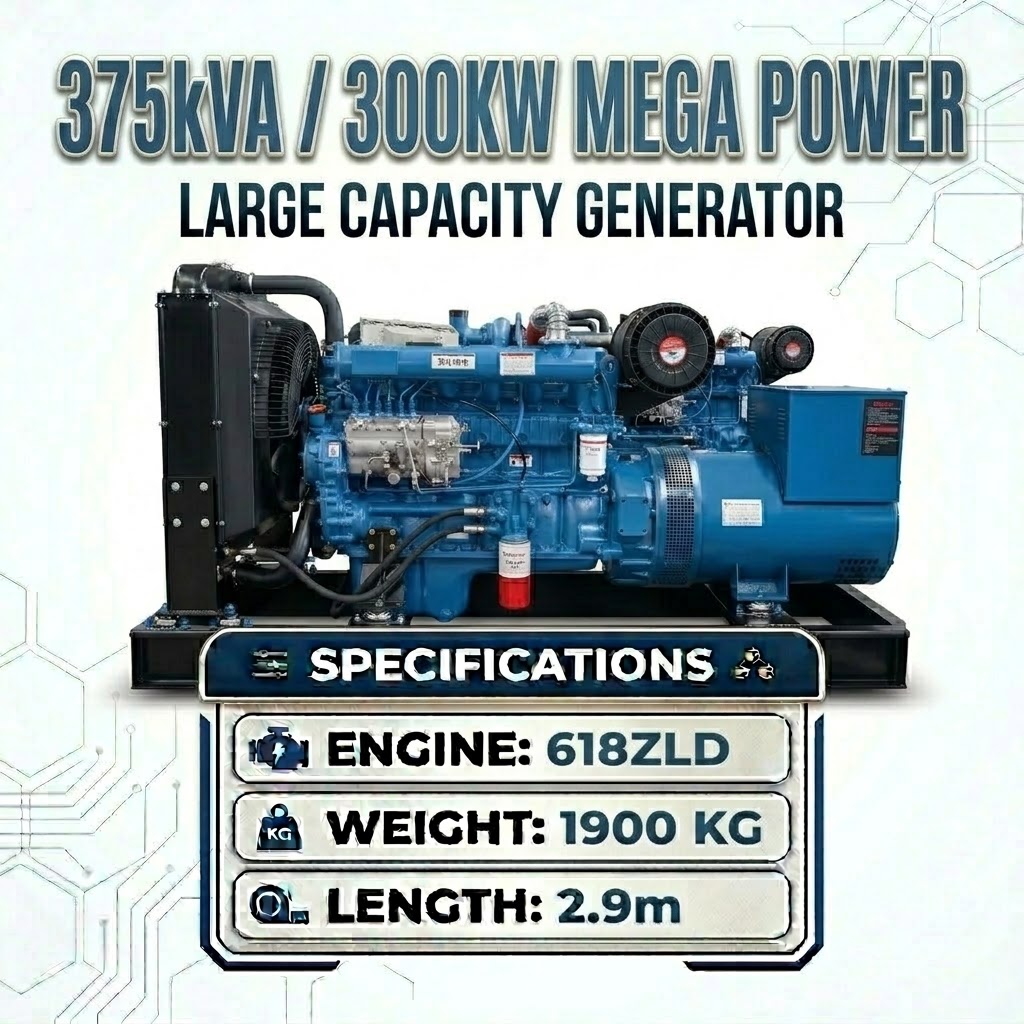

300kW / 375kVA Open Type Generator
- Engine: 618ZLD
- Controller: Full Auto (ATS)
- Weight: 1900 kg
- Dimensions: 2900 × 920 × 1400 mm

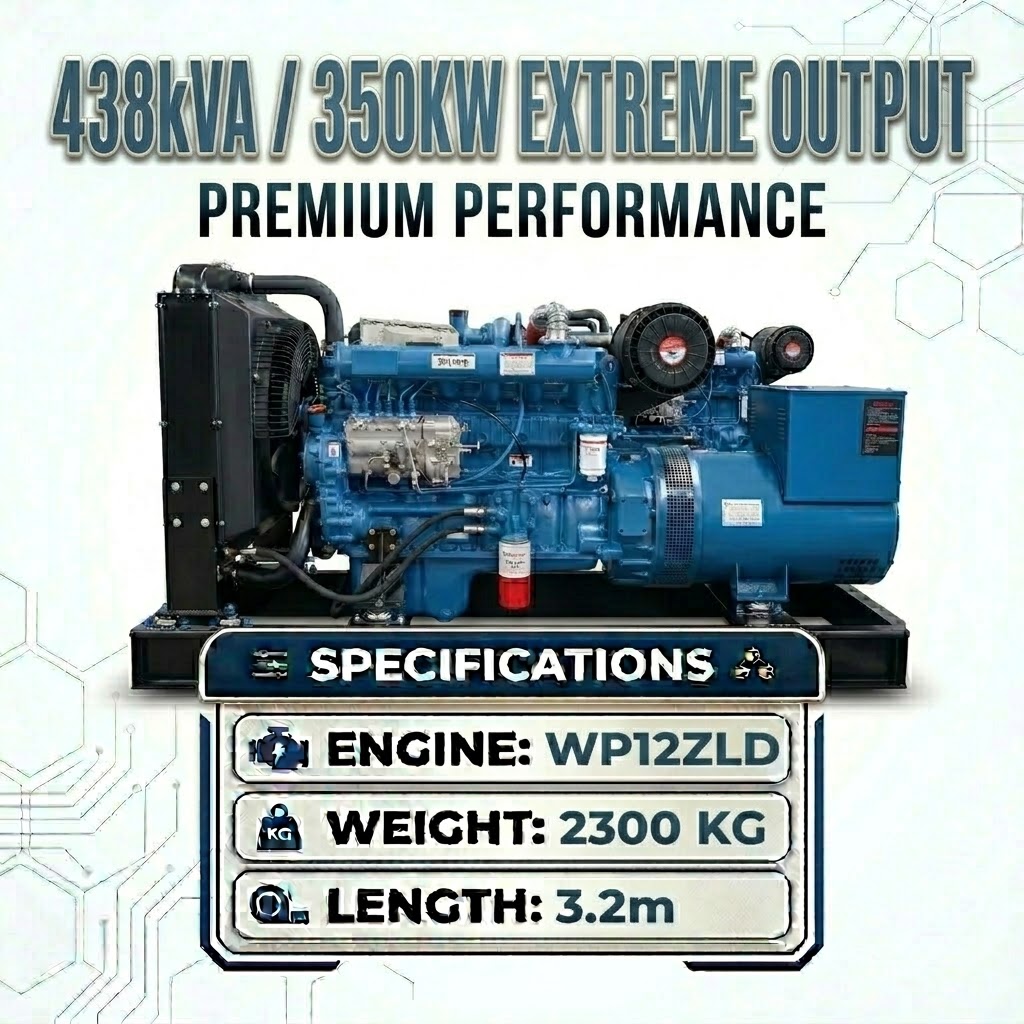

350kW / 438kVA Open Type Generator
- Engine: WP12ZLD
- Controller: Full Auto (ATS)
- Weight: 2300 kg
- Dimensions: 3200 × 1150 × 1600 mm

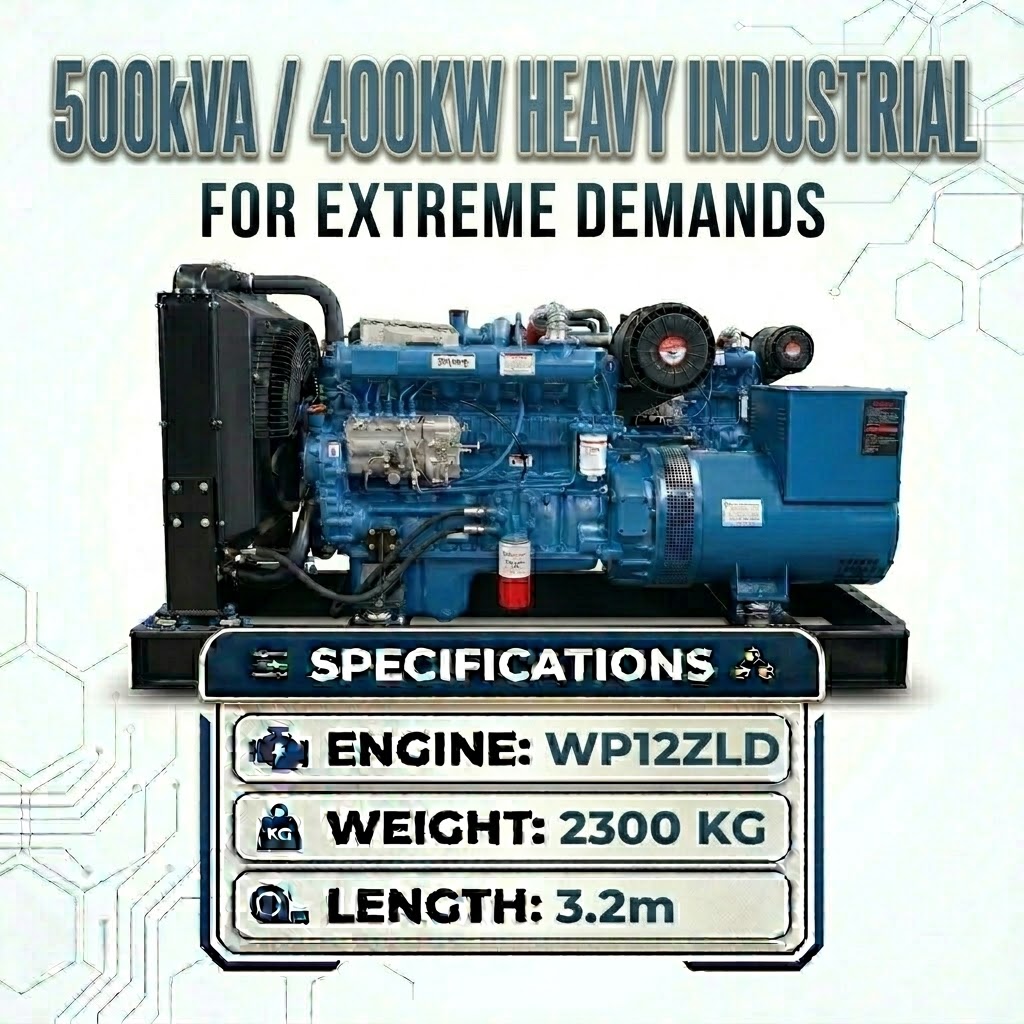

400kW / 500kVA Open Type Generator
- Engine: WP12ZLD
- Controller: Full Auto (ATS)
- Weight: 2300 kg
- Dimensions: 3200 × 1150 × 1600 mm
500kW / 625kVA Open Type Generator
- Engine: WP13ZLD
- Controller: Full Auto (ATS)
- Weight: 2500 kg
- Dimensions: 3200 × 1150 × 1600 mm
Why Choose Our Open Type Diesel Generators?
Our open type diesel generators are factory-direct from Weifang, China — where the majority of the world's diesel generator engines are manufactured. You buy at source, not through a chain of distributors.
Maximum Cost Efficiency
Without a soundproof canopy, open type generators deliver significantly more kilowatts per dollar than enclosed alternatives. For buyers installing in an existing generator room or building enclosure, this price advantage comes with no functional trade-off.
Proven Weifang Engine Platform
Every unit is built around a Weifang diesel engine — from the 4-cylinder ZH4100 series for 30–40kW applications to the 13-litre WP13ZLD for 500kW prime power. These engines are the backbone of millions of generator sets deployed worldwide.
Advanced Control Systems
Every open type generator up to 150kW includes the standard Four Protection controller: automatic shutdown on low oil pressure, high coolant temperature, over-speed, and over-current (upgradable to Full Auto ATS on request). For models 200kW and above, the Full Auto ATS system comes standard.
Applications of Open Type Generator Sets
Open type generators are the standard specification for any installation where the generator is housed in a dedicated enclosure, plant room, or generator building. If noise control is a requirement for your site, consider our Silent Type range instead.
Frequently Asked Questions
What is the difference between open type and silent type generators?
An open type generator has no outer canopy — the engine, alternator, and fuel system are exposed. This makes it lower cost and easier to service, but produces significantly more noise (typically 80–95 dB). A silent type generator is enclosed in a steel soundproof canopy, reducing noise to approximately 68 dB at 7 metres, and is suitable for outdoor installation and noise-sensitive environments.
Can I install an open type generator outdoors?
Open type generators are designed for indoor installation in a generator room, plant room, or enclosed structure that provides weather protection. For permanent outdoor installation, we strongly recommend our Silent Type range, which includes an IP44-equivalent weatherproof canopy.
Do you offer wholesale pricing for bulk orders?
Yes. As a direct manufacturer, we offer competitive wholesale pricing for trade buyers, EPC contractors, and bulk orders. Because you are purchasing directly from the factory, prices are typically 20–30% lower than distributor market rates for equivalent specifications. Contact us with your quantity and power requirements for a tailored quotation.
