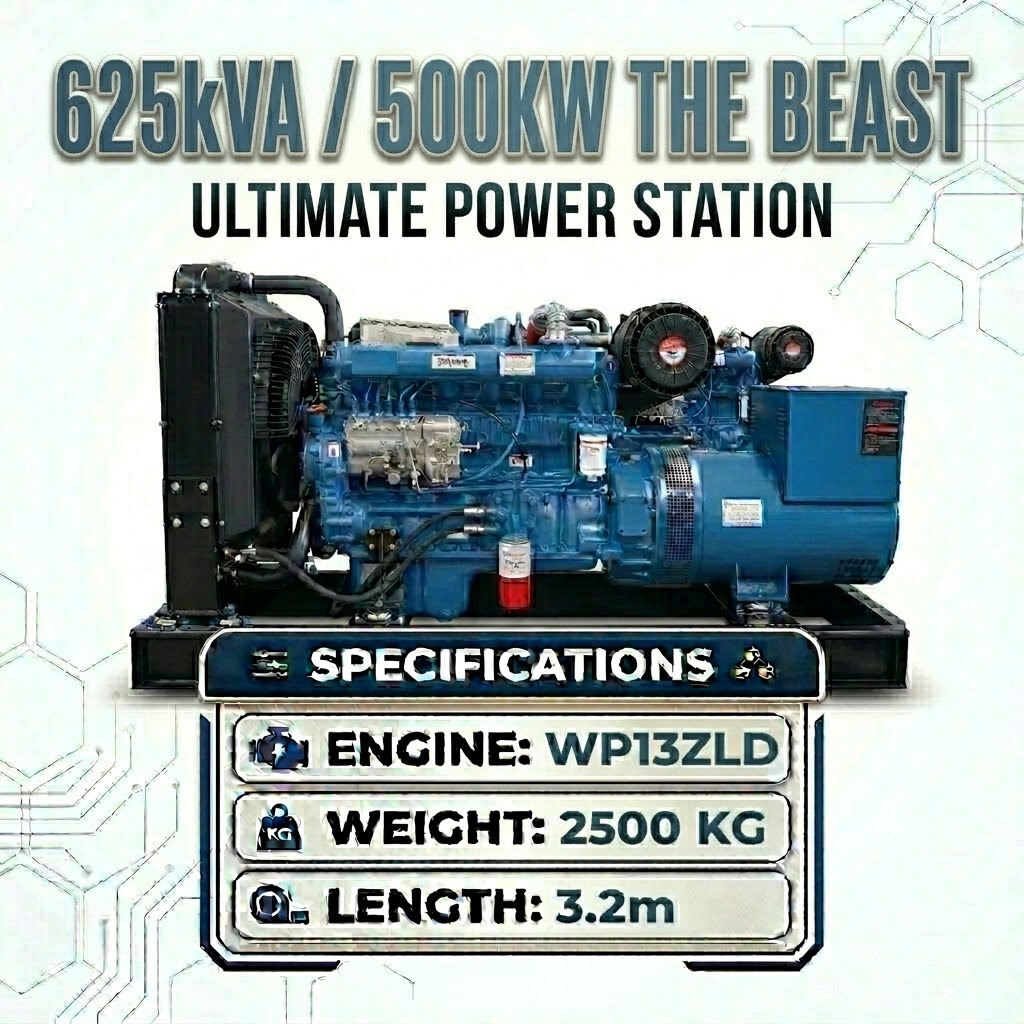

500kW / 625kVA Open Type Diesel Generator
Exposed Engine Architecture | Engine: WP13ZLD | SKU: YMDL-500GF-OPEN
The ultimate 500kW Diesel Generator providing megawatt-class performance.
Engineering Data & Specifications
| Metric | Performance Values |
|---|---|
| System SKU | YMDL-500GF-OPEN |
| Rated Power (Standby) | 500 kW / 625 kVA |
| Rated Power (Prime) | 450 kW / 562 kVA |
| Rated Voltage | 400V / 230V (3-Phase 4-Wire) |
| Rated Frequency | 50 Hz |
| Power Factor | 0.8 (Lagging) |
| Engine Model | WP13ZLD (Weifang) |
| Engine Type | 4-Stroke, Water-Cooled, In-line 4-Cylinder |
| Displacement | 4.15 L |
| Rated Engine Speed | 1500 RPM |
| Alternator | Half-Copper Brushed (Default) |
| Controller | Industrial Diagnostics System (Default) |
| Frame Construction | None (Heavy-duty steel base frame) |
| IP Rating | IP23 (Requires indoor/sheltered installation) |
| Fuel Tank Capacity | Base tank for ≥ 8 hours at full load |
| Dry Weight | 2500 kg |
| Dimensions (L × W × H) | 3200 × 1150 × 1600 mm |
| Starting System | Electric Start (12V / 24V) |
| Cooling System | Water-Cooled with Radiator |
| Certification | ISO 8528 / CE |
500kW Diesel Generator Command
Managing the 500kW Diesel Generator expertly.
Why it matters: Heavy-duty open generators often run in hot, dusty rooms. A sudden drop in oil or spike in temperature goes unnoticed until it's too late. This module is your automated mechanic.
Operating an open base-frame generator requires reliable fail-safes. Whether a stray piece of debris blocks the radiator or a sudden electrical fault occurs downstream on your site, the control module instantly isolates the problem, stopping the engine dead in tracks to preserve its mechanical integrity.
-
Oil CommandRules 500kW Diesel Generator pressure.
-
Heat CommandMasters 500kW Diesel Generator temp.
-
RPM CommandControls 500kW Diesel Generator revs.
-
Grid CommandProtects 500kW Diesel Generator load.
Core Advantages of the Open-Frame Build
500kW Foundation
Solid 500kW Diesel Generator base.
500kW Open Cooling
Massive 500kW Diesel Generator airflow.
500kW Total Access
Fix the 500kW Diesel Generator fast.
500kW Budget Win
Smart 500kW Diesel Generator buy.
500kW Fuel Hub
Feeds the 500kW Diesel Generator.
WP13ZLD Ultimate
Beast 500kW Diesel Generator engine.
Physical Dimensions & Weight
Frequently Asked Questions
Is 500kW enough power for my facility?
A typical 500kW generator can power lighting, refrigeration, water pumps, and several air conditioning units simultaneously. For a standard facility under 300m², 500kW is usually sufficient for essential loads. We recommend listing your equipment wattage for a precise sizing check.
How much fuel does the 500kW generator consume per hour?
At full load, the WP13ZLD engine consumes approximately 7–8 litres of diesel per hour. At 75% load (typical operating condition), fuel consumption drops to around 5.5–6.5 litres/hour. The built-in base tank supports ≥8 hours of runtime at full load.
Can I install this open type unit outdoors permanently?
No. Open type generators must be installed indoors in a dedicated, well-ventilated generator room or under a protective shelter. They are not waterproof and should not be exposed to direct rain or extreme weather without a canopy.
What does the "Four Protection System" controller do?
The standard controller monitors four critical parameters in real-time: oil pressure, coolant temperature, engine over-speed, and over-current. If any parameter exceeds the safe threshold, the controller will automatically shut down the engine to prevent damage. It can be upgraded to a Full Auto (ATS) system for unmanned, automatic operation.
What is the difference between the brushed and brushless alternator options?
The default half-copper brushed alternator requires periodic brush replacement but is cost-effective for standard applications. The brushless variants (half-copper or full-copper) eliminate brush wear, provide cleaner power output, and are more suitable for sensitive electronics or installations with minimal maintenance access.
Do you offer wholesale or bulk order pricing?
Yes. As a direct manufacturer, we offer competitive wholesale pricing for bulk orders. The listed price of $11,169 reflects the default single-unit FOB China price. Please contact us with your quantity and specifications for a tailored quotation.
