Mobile Trailer Diesel Generators
Road-towable diesel generator sets for construction sites, mining camps, events, and emergency deployment. 13 power ratings from 30kW to 500kW — factory direct, ready to ship.
Road-Towable Heavy-Duty Chassis
Each unit is factory-mounted on a purpose-built steel single-axle or tandem-axle trailer with standard tow coupling, stabiliser jacks, and road lighting. Tow behind any standard truck or heavy 4WD — no specialist transport required.
Weatherproof Silent Canopy
Fully enclosed in the same steel soundproof canopy as our Silent Type range, providing IP44-equivalent weather protection and approximately 68 dB(A) noise performance at 7 metres — suitable for deployment anywhere.
Rapid On-Site Deployment
Designed for applications requiring fast setup and regular site relocation. Level with stabiliser jacks, connect the load, and power on. No permanent foundation or installation required — operational within minutes of arrival on site.
Available Models
30kW / 38kVA Mobile Trailer Generator
- Engine: ZH4100D
- Controller: Four Protection System
- Weight: 1064 kg
- Dimensions: 2000 × 1500 × 1950 mm
40kW / 50kVA Mobile Trailer Generator
- Engine: ZH4100ZD
- Controller: Four Protection System
- Weight: 1156 kg
- Dimensions: 2250 × 1500 × 2050 mm
50kW / 63kVA Mobile Trailer Generator
- Engine: R4105ZD
- Controller: Four Protection System
- Weight: 1176 kg
- Dimensions: 2450 × 1500 × 2050 mm
75kW / 94kVA Mobile Trailer Generator
- Engine: R6105AZD
- Controller: Four Protection System
- Weight: 1650 kg
- Dimensions: 2450 × 1500 × 2050 mm

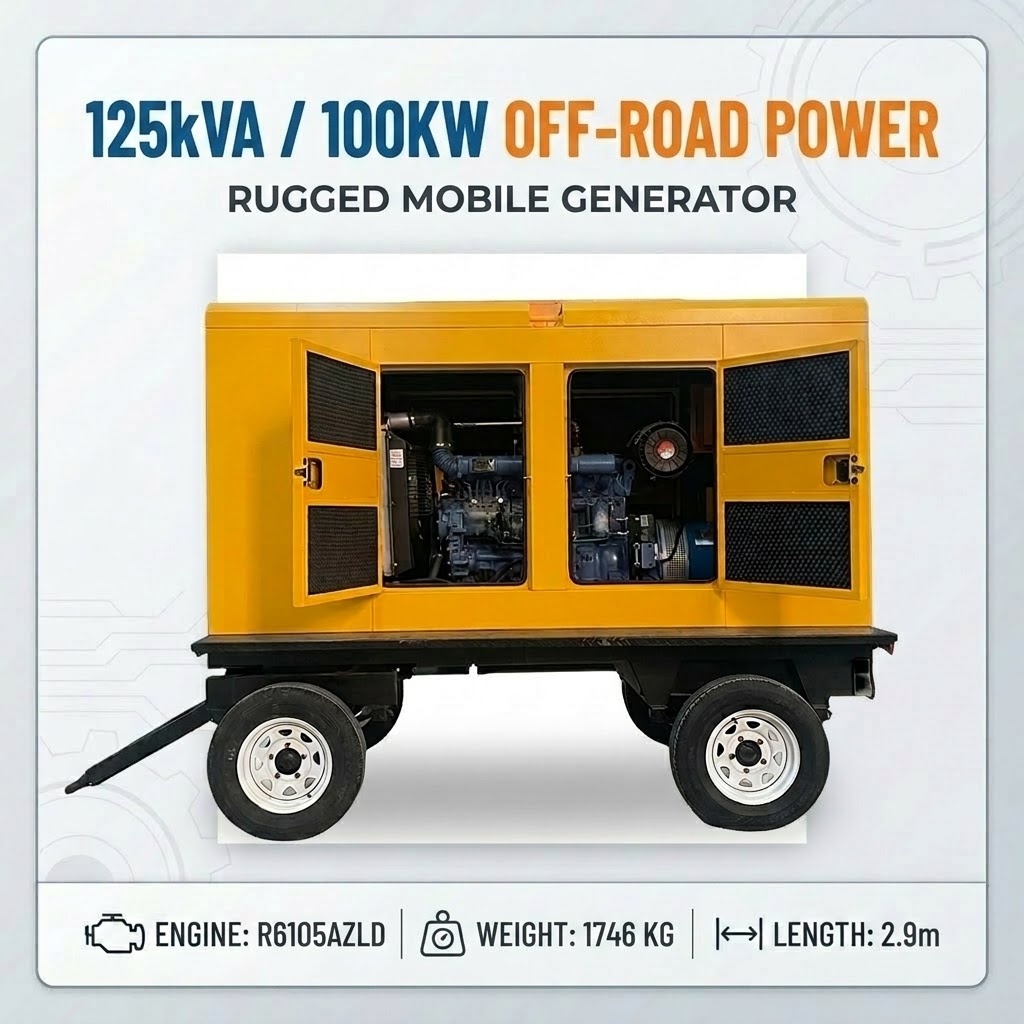

100kW / 125kVA Mobile Trailer Generator
- Engine: R6105AZLD
- Controller: Four Protection System
- Weight: 1746 kg
- Dimensions: 2900 × 1600 × 2300 mm
120kW / 150kVA Mobile Trailer Generator
- Engine: R6105IZLD
- Controller: Four Protection System
- Weight: 1650 kg
- Dimensions: 2900 × 1600 × 2300 mm

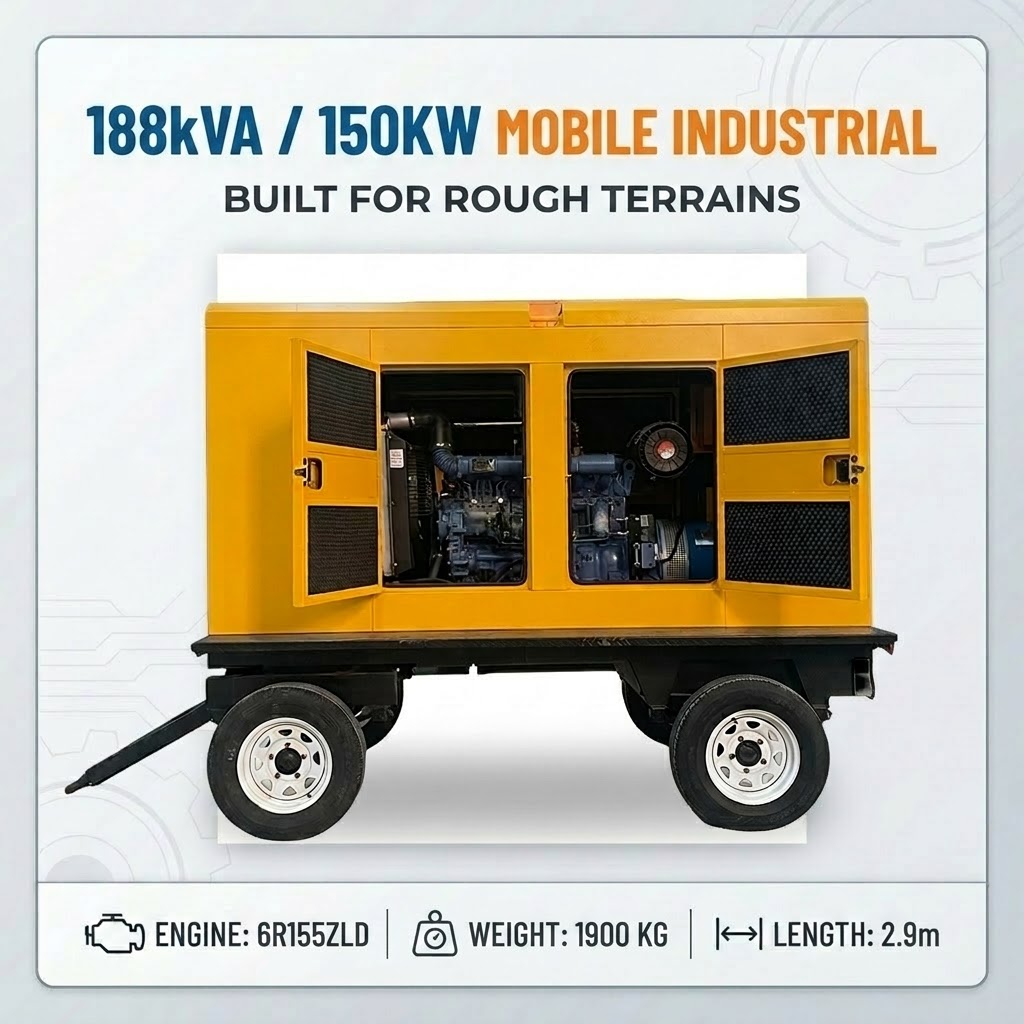

150kW / 188kVA Mobile Trailer Generator
- Engine: 6R155ZLD
- Controller: Four Protection System
- Weight: 1900 kg
- Dimensions: 2900 × 1600 × 2300 mm

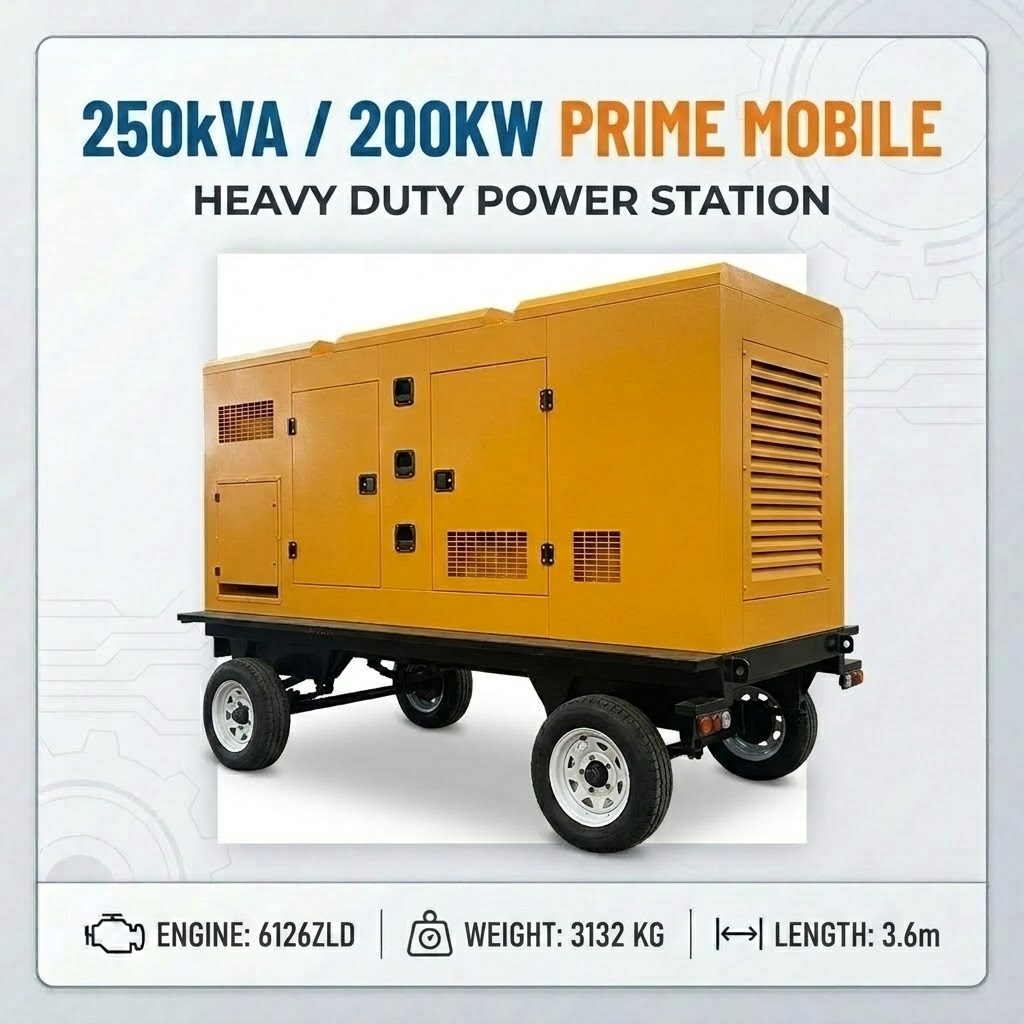

200kW / 250kVA Mobile Trailer Generator
- Engine: 6126ZLD
- Controller: Full Auto (ATS)
- Weight: 3132 kg
- Dimensions: 3600 × 1800 × 2600 mm

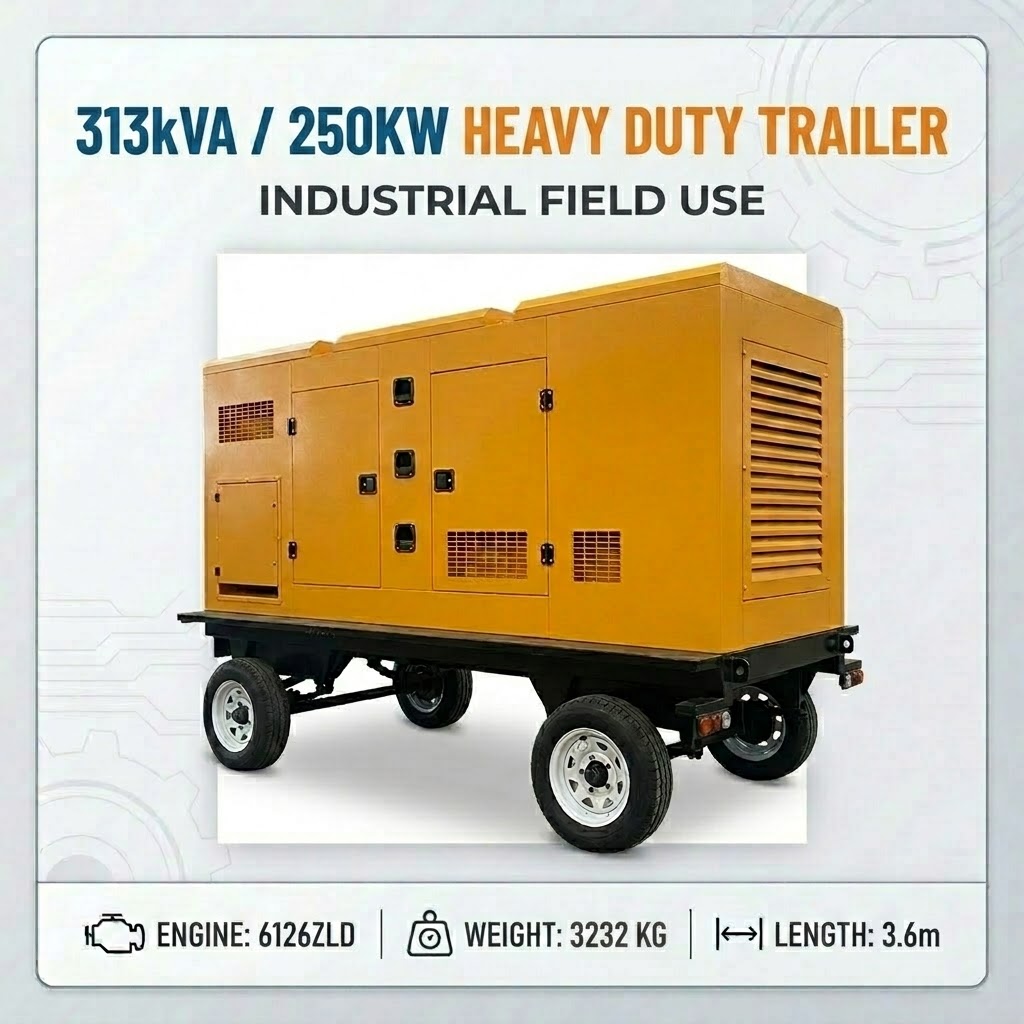

250kW / 313kVA Mobile Trailer Generator
- Engine: 6126ZLD
- Controller: Full Auto (ATS)
- Weight: 3232 kg
- Dimensions: 3600 × 1800 × 2610 mm

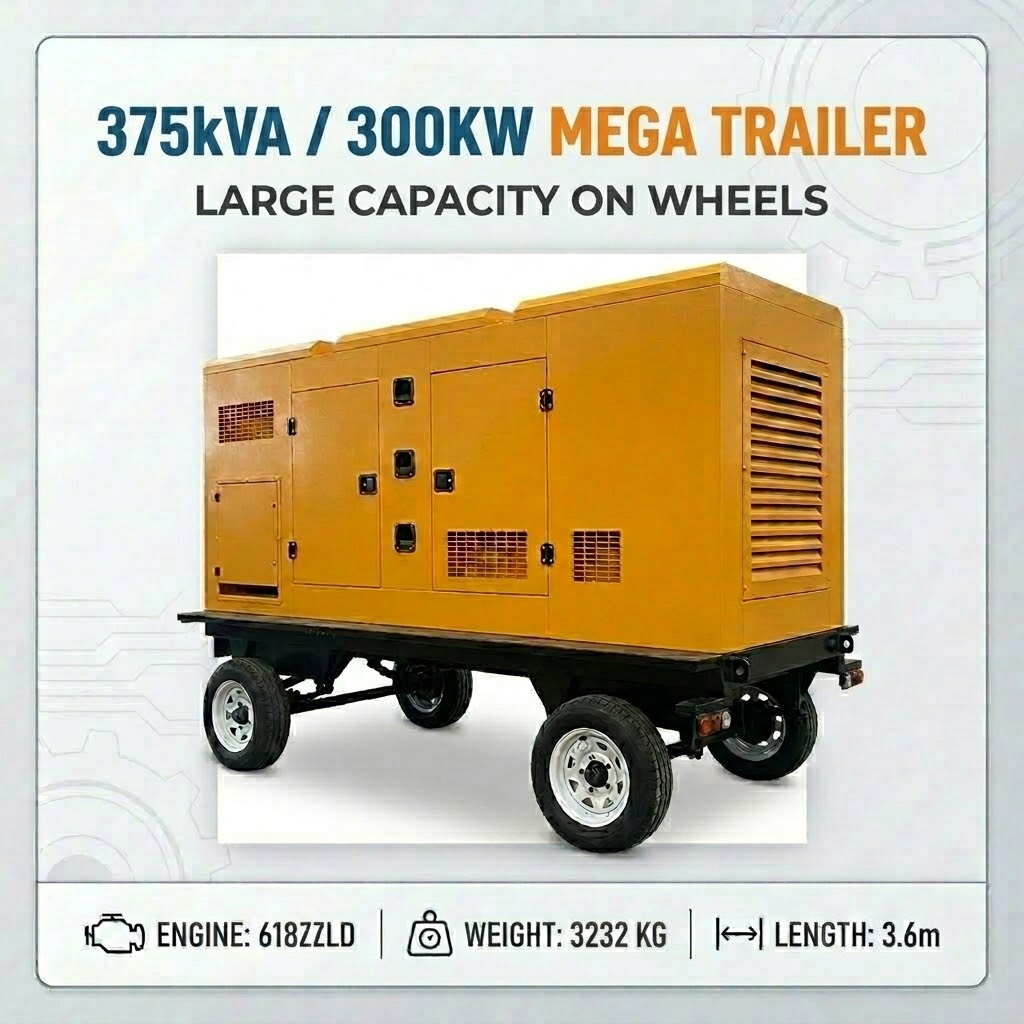

300kW / 375kVA Mobile Trailer Generator
- Engine: 618ZLD
- Controller: Full Auto (ATS)
- Weight: 3232 kg
- Dimensions: 3600 × 1800 × 2610 mm
350kW / 438kVA Mobile Trailer Generator
- Engine: WP12ZLD
- Controller: Full Auto (ATS)
- Weight: 3632 kg
- Dimensions: 3600 × 1800 × 2610 mm

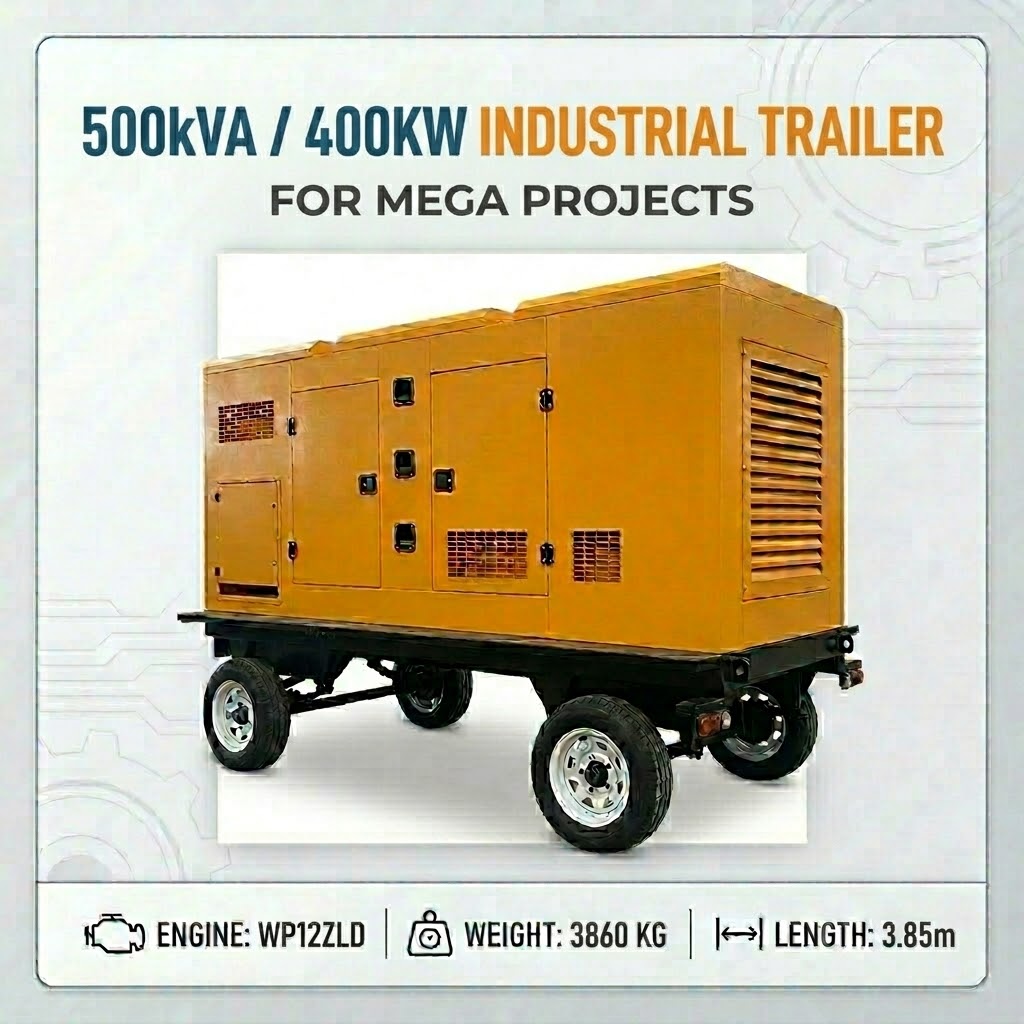

400kW / 500kVA Mobile Trailer Generator
- Engine: WP12ZLD
- Controller: Full Auto (ATS)
- Weight: 3860 kg
- Dimensions: 3850 × 1800 × 2610 mm
500kW / 625kVA Mobile Trailer Generator
- Engine: WP13ZLD
- Controller: Full Auto (ATS)
- Weight: 4060 kg
- Dimensions: 3850 × 1800 × 2610 mm
Why Choose Our Mobile Trailer Generators?
Mobile trailer generators combine the sound performance of our Silent Type range with the deployment flexibility of a road-mobile platform — the ideal solution for operations that move.
Deploy Anywhere, Relocate Anytime
The heavy-duty trailer chassis allows the generator to be towed between project sites, eliminating the need to own separate generator assets at each location. One unit can serve multiple sites sequentially, significantly reducing capital expenditure for multi-site operators.
Same Engine Quality as Fixed Units
Trailer generators use identical Weifang diesel engines as our open and silent type ranges — the same proven powertrains used in hundreds of thousands of installations worldwide. There is no engineering compromise in the generator itself due to the trailer format.
Advanced Control Systems
Every trailer generator up to 150kW ships with the standard Four Protection System controller, with an optional Full Auto ATS upgrade. For models 200kW and above, the Full Auto ATS system comes standard, allowing fully automatic start, connect, and shutdown on grid failure.
Applications of Mobile Trailer Generator Sets
Mobile trailer generators are the standard choice for any application where the power source must be regularly relocated. From construction site power to outdoor concert stages and emergency disaster response, the trailer format provides maximum operational flexibility without sacrificing generator performance.
Frequently Asked Questions
What towing vehicle is required for the trailer generator?
For units up to 150kW, a standard heavy pickup truck or medium commercial vehicle with an appropriate tow rating is sufficient. For units from 200kW upwards (trailer weight 3,000–4,000+ kg), a heavy commercial truck with appropriate tow capacity and coupling is required. We recommend confirming tow vehicle specifications with your local transport authority.
Can the trailer generator be used while stationary for extended periods?
Yes. The trailer generator is equally effective as a fixed installation when deployed with stabiliser jacks and connected to a permanent or semi-permanent load. Many customers use trailer generators as long-term site power solutions with the option to relocate at end-of-project.
Do you offer wholesale pricing for fleet or bulk orders?
Yes. Power rental companies, construction contractors, and EPC firms regularly purchase multiple trailer generator units. As a direct manufacturer, we offer significant pricing advantages on fleet orders of 3 or more units. Contact us with your fleet requirements and timeline for a structured proposal.
