100kW / 125kVA Open Type Diesel Generator
Exposed Engine Architecture | Engine: R6105AZLD | SKU: YMDL-100GF-OPEN
Our flagship 100kW Diesel Generator providing stable 3-phase output.
Engineering Data & Specifications
| Metric | Performance Values |
|---|---|
| System SKU | YMDL-100GF-OPEN |
| Rated Power (Standby) | 100 kW / 125 kVA |
| Rated Power (Prime) | 90 kW / 112 kVA |
| Rated Voltage | 400V / 230V (3-Phase 4-Wire) |
| Rated Frequency | 50 Hz |
| Power Factor | 0.8 (Lagging) |
| Engine Model | R6105AZLD (Weifang) |
| Engine Type | 4-Stroke, Water-Cooled, In-line 4-Cylinder |
| Displacement | 4.15 L |
| Rated Engine Speed | 1500 RPM |
| Alternator | Half-Copper Brushed (Default) |
| Controller | Industrial Diagnostics System (Default) |
| Frame Construction | None (Heavy-duty steel base frame) |
| IP Rating | IP23 (Requires indoor/sheltered installation) |
| Fuel Tank Capacity | Base tank for ≥ 8 hours at full load |
| Dry Weight | 950 kg |
| Dimensions (L × W × H) | 2300 × 720 × 1200 mm |
| Starting System | Electric Start (12V / 24V) |
| Cooling System | Water-Cooled with Radiator |
| Certification | ISO 8528 / CE |
100kW Diesel Generator Fail-Safe
Advanced telemetry keeping your 100kW Diesel Generator secure.
Why it matters: Heavy-duty open generators often run in hot, dusty rooms. A sudden drop in oil or spike in temperature goes unnoticed until it's too late. This module is your automated mechanic.
Operating an open base-frame generator requires reliable fail-safes. Whether a stray piece of debris blocks the radiator or a sudden electrical fault occurs downstream on your site, the control module instantly isolates the problem, stopping the engine dead in tracks to preserve its mechanical integrity.
-
Oil ScrutinyEnsures the 100kW Diesel Generator runs smooth.
-
Temp MasterHalts the 100kW Diesel Generator instantly.
-
RPM LockManages the 100kW Diesel Generator's throttle.
-
Current GuardProtects the 100kW Diesel Generator's coils.
Core Advantages of the Open-Frame Build
Robust 100kW Base
Anchors the 100kW Diesel Generator securely.
Open 100kW Design
Breathes freely, keeping the 100kW Diesel Generator frosty.
Easy 100kW Checks
Inspect your 100kW Diesel Generator instantly.
Ultimate 100kW Value
Raw 100kW Diesel Generator power for less.
100kW Fuel Autonomy
Run the 100kW Diesel Generator continuously.
R6105AZLD Engine
High displacement drives this 100kW Diesel Generator.
Physical Dimensions & Weight
Frequently Asked Questions
Is 100kW enough power for my facility?
A typical 100kW generator can power lighting, refrigeration, water pumps, and several air conditioning units simultaneously. For a standard facility under 300m², 100kW is usually sufficient for essential loads. We recommend listing your equipment wattage for a precise sizing check.
How much fuel does the 100kW generator consume per hour?
At full load, the R6105AZLD engine consumes approximately 7–8 litres of diesel per hour. At 75% load (typical operating condition), fuel consumption drops to around 5.5–6.5 litres/hour. The built-in base tank supports ≥8 hours of runtime at full load.
Can I install this open type unit outdoors permanently?
No. Open type generators must be installed indoors in a dedicated, well-ventilated generator room or under a protective shelter. They are not waterproof and should not be exposed to direct rain or extreme weather without a canopy.

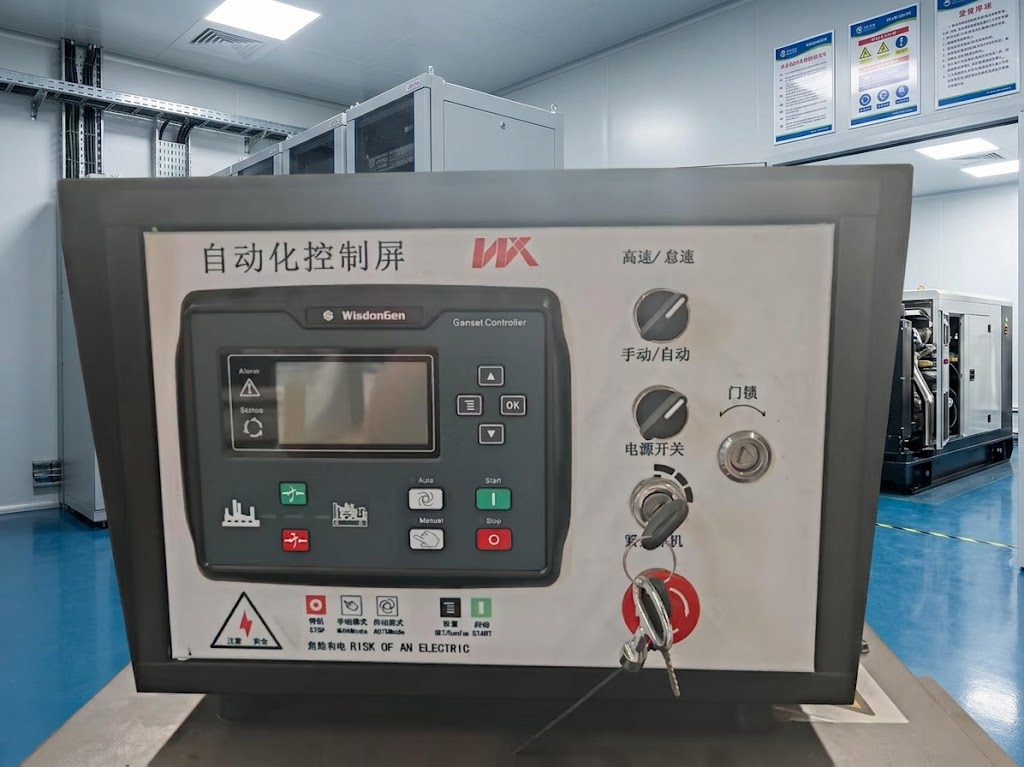

What does the "Four Protection System" controller do?
The standard controller monitors four critical parameters in real-time: oil pressure, coolant temperature, engine over-speed, and over-current. If any parameter exceeds the safe threshold, the controller will automatically shut down the engine to prevent damage. It can be upgraded to a Full Auto (ATS) system for unmanned, automatic operation.
What is the difference between the brushed and brushless alternator options?
The default half-copper brushed alternator requires periodic brush replacement but is cost-effective for standard applications. The brushless variants (half-copper or full-copper) eliminate brush wear, provide cleaner power output, and are more suitable for sensitive electronics or installations with minimal maintenance access.
Do you offer wholesale or bulk order pricing?
Yes. As a direct manufacturer, we offer competitive wholesale pricing for bulk orders. The listed price of $2,926 reflects the default single-unit FOB China price. Please contact us with your quantity and specifications for a tailored quotation.
